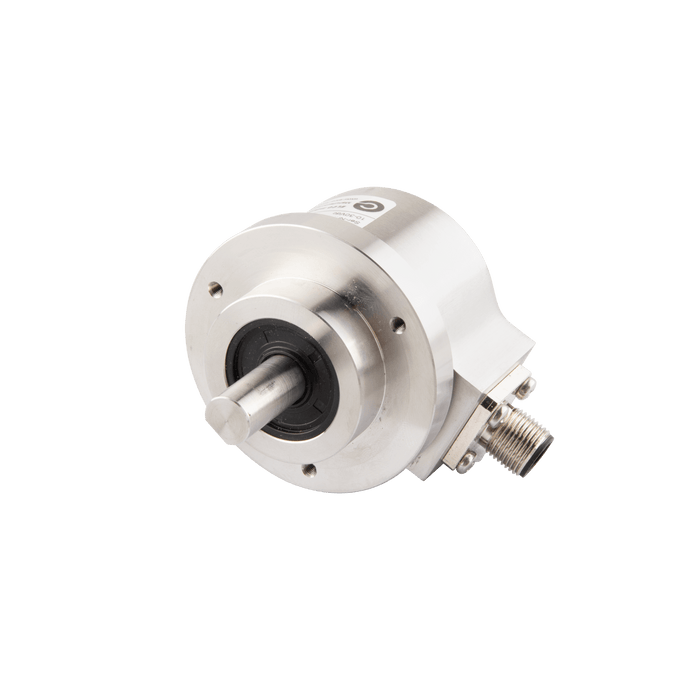

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

EV50C10-L6PR-1024M8

SKU EV50C10-L6PR-1024M8
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

$173.83 - $173.83
$173.83
$173.83 - $173.83
$173.83
Availability:
In stock

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

Specifications

Ambient temperature -40 ... +85 °C
Max Speed(rpm) 6000 rpm
Model Incremental encoder
Shaft diameter 10 mm
Shock resistance 50 g, 11 ms
Pulse frequency 300 kHz
Connection type M12 8-pin Male
Housing material Al-alloy
Permissible load(channel) ±20 mA
Housing diameter 50 mm
IP rating IP65

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50C10(R)-xxPR-xxxxM8_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
