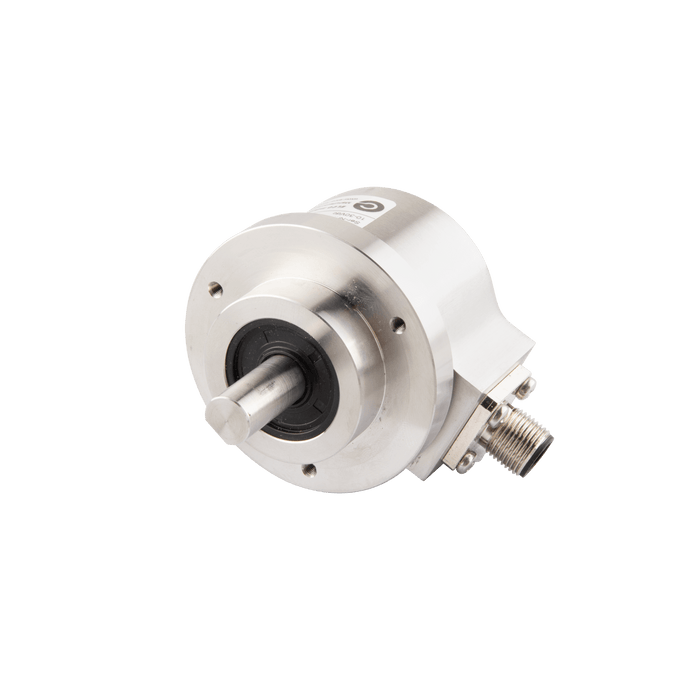

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

EV50C10-L5PR-1024M8

SKU EV50C10-L5PR-1024M8
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

$166.19 - $166.19
$166.19
$166.19 - $166.19
$166.19
Availability:
In stock

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

Specifications

Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Connection type M12 8-pin Male
Pulse frequency 300 kHz
Permissible load(channel) ±20 mA
Housing material Al-alloy
Ambient temperature -40 ... +85 °C
Housing diameter 50 mm
IP rating IP65
Starting torque ＜ 0.01 Nm

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50C10(R)-xxPR-xxxxM8_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
