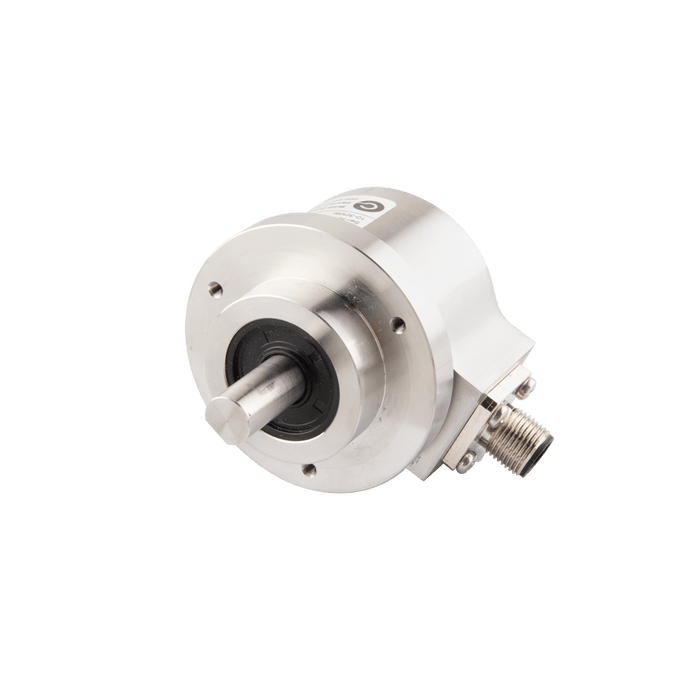

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8pin, Resoluteion 1024

EV50C10-H6PR-1024M8

SKU EV50C10-H6PR-1024M8
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8pin, Resoluteion 1024

$173.83 - $173.83
$173.83
$173.83 - $173.83
$173.83
Availability:
In stock

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8pin, Resoluteion 1024

Specifications

Resolution 1024 ppr
Connection type M12 8-pin Male
Pulse frequency 300 kHz
Permissible load(channel) ±30 mA
Output logic Push-pull HTL with inverted signal
Supply voltage 10 ... 30 V DC
Max load capacity of the shaft 40 N Axial80 N Radial
Ambient temperature -40 ... +85 °C
Flange type Clamping flang

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50C10(R)-xxPR-xxxxM8_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
