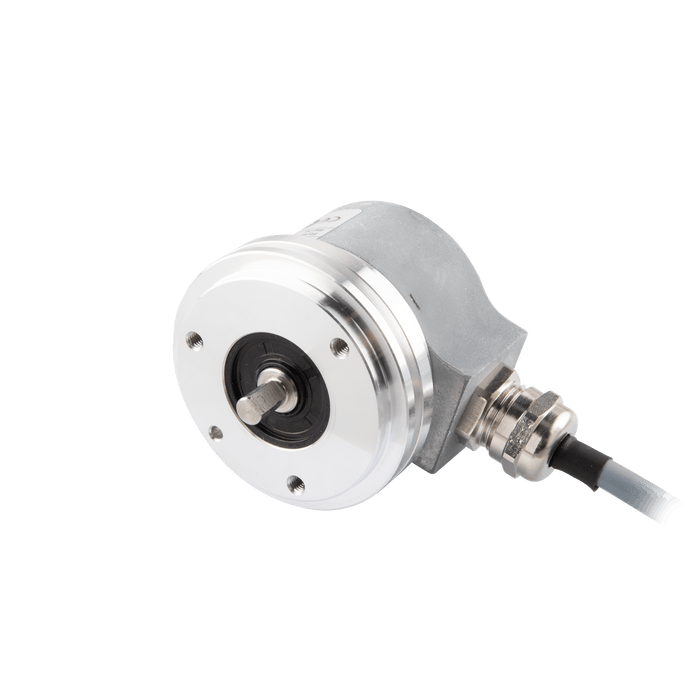

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

EV50B6-P6PR-1024

SKU EV50B6-P6PR-1024
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

$152.39 - $152.39
$152.39
$152.39 - $152.39
$152.39
Availability:
In stock

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Shaft type Solid shaft
Flange type Synchro flange
Ambient temperature -40 ... +85 °C
Moment of inertia 1.9 x 10-6 kgm2
Max load capacity of the shaft 40 N Axial80 N Radial
Shaft diameter 6 mm
Max Speed(rpm) 6000 rpm
Shock resistance 50 g, 11 ms
Cable length 1.5 m
Connection type Cable outlet

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50B6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
