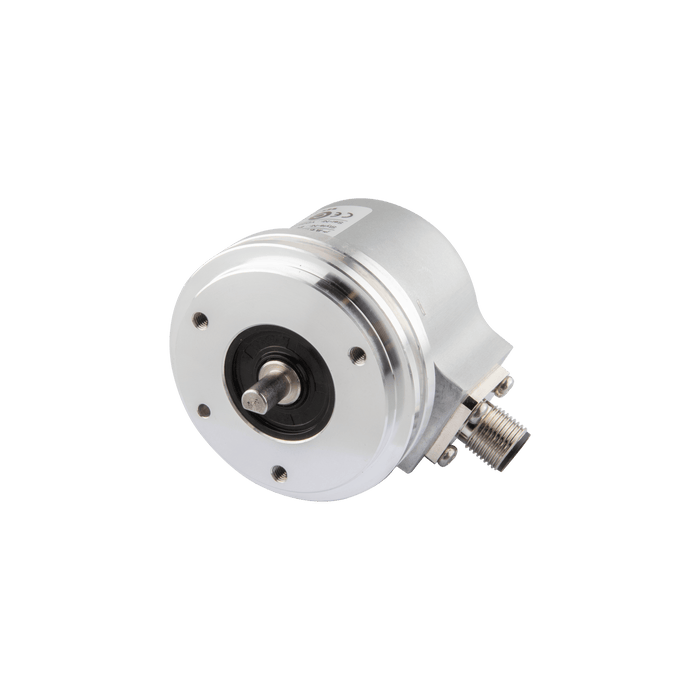

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 5Pin, Resoluteion 500

EV50B6-H6PR-500M5

SKU EV50B6-H6PR-500M5
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 5Pin, Resoluteion 500

$173.83 - $173.83
$173.83
$173.83 - $173.83
$173.83
Availability:
In stock

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 5Pin, Resoluteion 500

Specifications

Shock resistance 50 g, 11 ms
Shaft type Solid shaft
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Synchro flange
Shaft diameter 6 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 k

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50B6(R)-xxPR-xxxxM5_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
