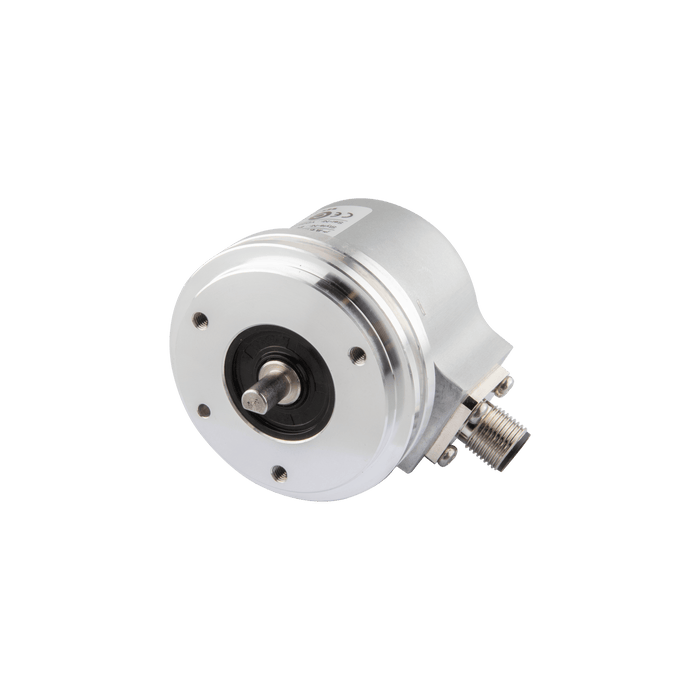

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

EV50B6-H6PR-1024M8

SKU EV50B6-H6PR-1024M8
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

$173.83 - $173.83
$173.83
$173.83 - $173.83
$173.83
Availability:
In stock

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

Specifications

Shaft diameter 6 mm
Ambient temperature -40 ... +85 °C
Max Speed(rpm) 6000 rpm
Shaft type Solid shaft
Shock resistance 50 g, 11 ms
Connection type M12 8-pin Male
Pulse frequency 300 kHz
Housing material Al-alloy
Permissible load(channel) ±30 mA
Output logic Push-pull HTL with inverted signal

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50B6(R)-xxPR-xxxxM8_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
