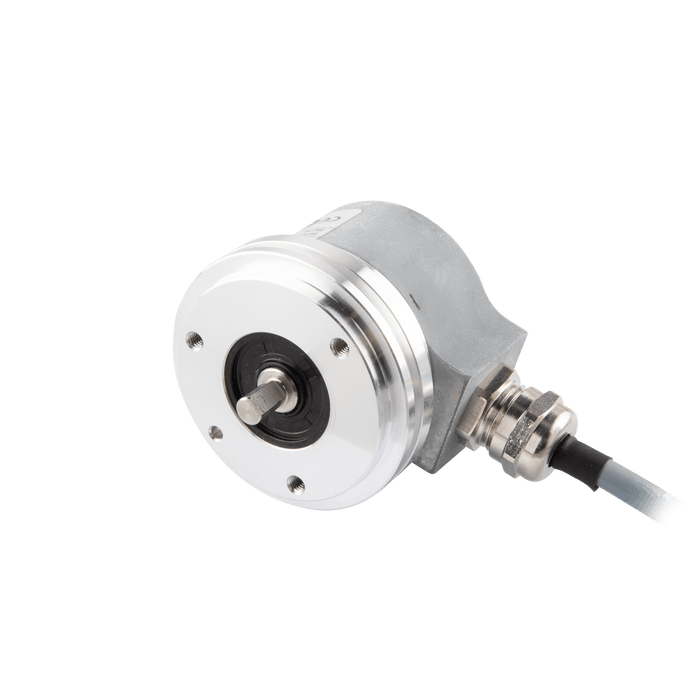

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

EV50B10-L6PR-1024

SKU EV50B10-L6PR-1024
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

$160.03 - $160.03
$160.03
$160.03 - $160.03
$160.03
Availability:
In stock

Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Max Speed(rpm) 6000 rpm
Pulse frequency 300 kHz
Cable length 1.5 m
Connection type Cable outlet
Weight 400 g
Permissible load(channel) ±20 mA
Ambient temperature -40 ... +85 °C
Output logic TTL
Supply voltage 10 ... 30 V DC
Vibration resistance 10 g, 10 ... 2000 Hz
Resolution 1024 ppr

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50B10(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
