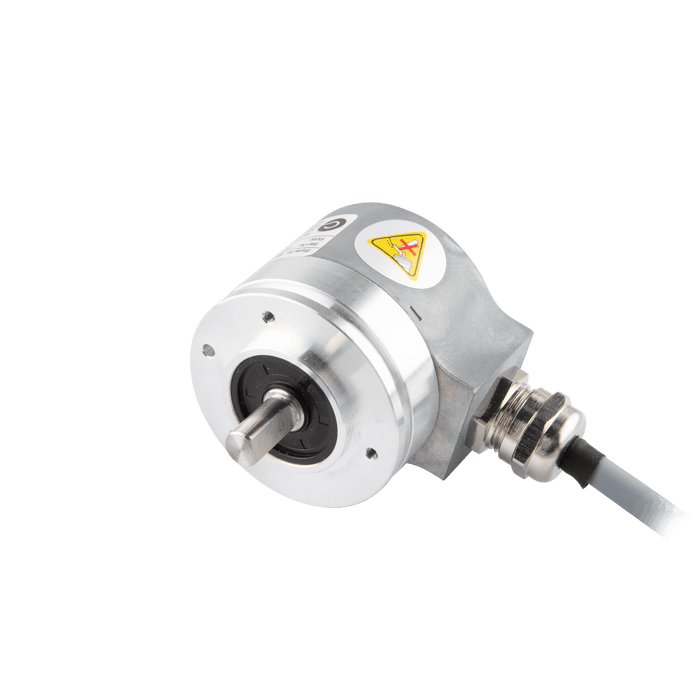

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 360

EV50A8-P6PR-360.CN0020

SKU EV50A8-P6PR-360.CN0020
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 360

$145.72 - $145.72
$145.72
$145.72 - $145.72
$145.72
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 360

Specifications

Pulse frequency 300 kHz
Max load capacity of the shaft 40 N Axial80 N Radial
Flange type Clamping flange
Shaft diameter 8 mm
Max Speed(rpm) 6000 rpm
Cable length 2 m
Moment of inertia 1.9 x 10-6 kgm2
Connection type Cable outlet
Housing material Al-alloy
Permissible load(channel) ±30 mA

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50A8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
