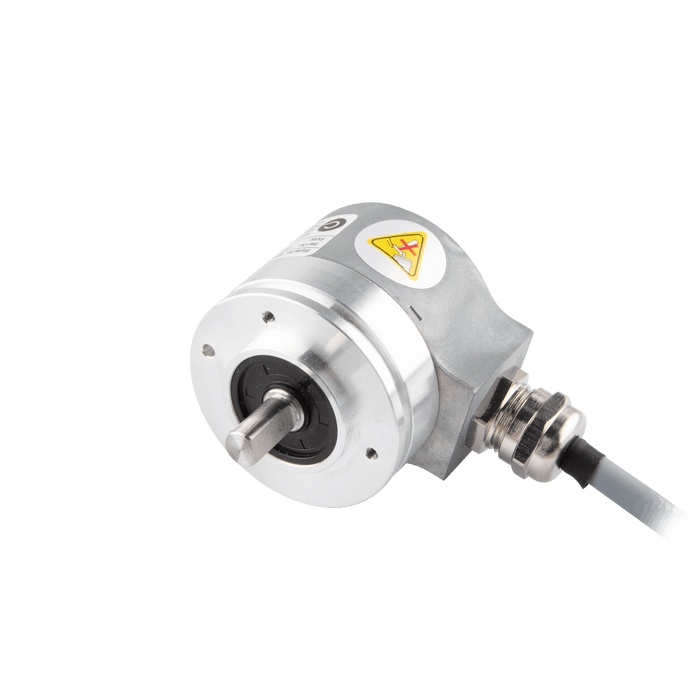

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 3600

EV50A8-P6PR-3600.CN0020

SKU EV50A8-P6PR-3600.CN0020
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 3600

$166.56 - $166.56
$166.56
$166.56 - $166.56
$166.56
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 3600

Specifications

Flange type Clamping flange
Connection type Cable outlet
Shaft type Solid shaft
Max Speed(rpm) 6000 rpm
Max load capacity of the shaft 40 N Axial80 N Radial
Shock resistance 50 g, 11 ms
Cable length 2 m
Pulse frequency 300 kHz
Permissible load(channel) ±30 mA
Ambient temperature -40 ... +85 °C

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50A8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
