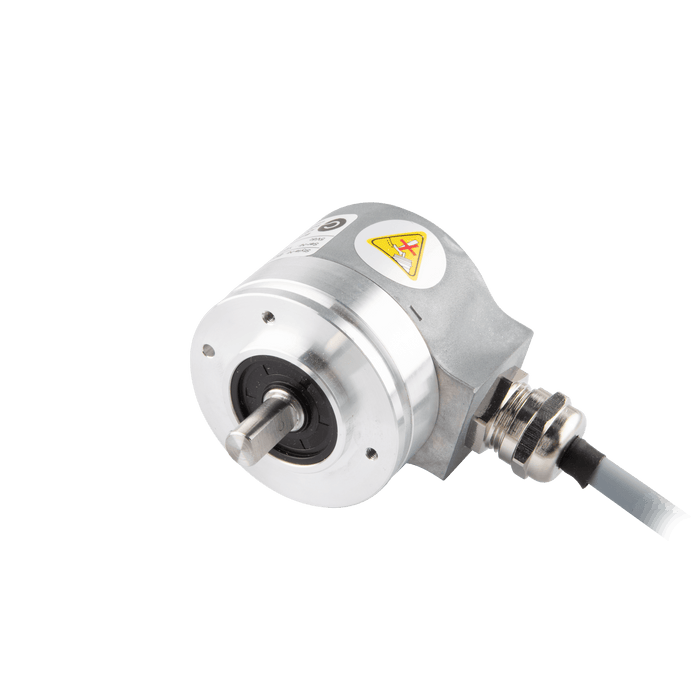

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 1024

EV50A8-P6PR-1024.CN0020

SKU EV50A8-P6PR-1024.CN0020
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 1024

$145.72 - $145.72
$145.72
$145.72 - $145.72
$145.72
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resoluteion 1024

Specifications

Ambient temperature -40 ... +85 °C
Weight 400 g
Cable length 2 m
Shaft type Solid shaft
Max Speed(rpm) 6000 rpm
Max load capacity of the shaft 40 N Axial80 N Radial
Moment of inertia 1.9 x 10-6 kgm2
Shaft diameter 8 mm
Flange type Clamping flange
Shock resistance 50 g, 11 ms

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50A8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
