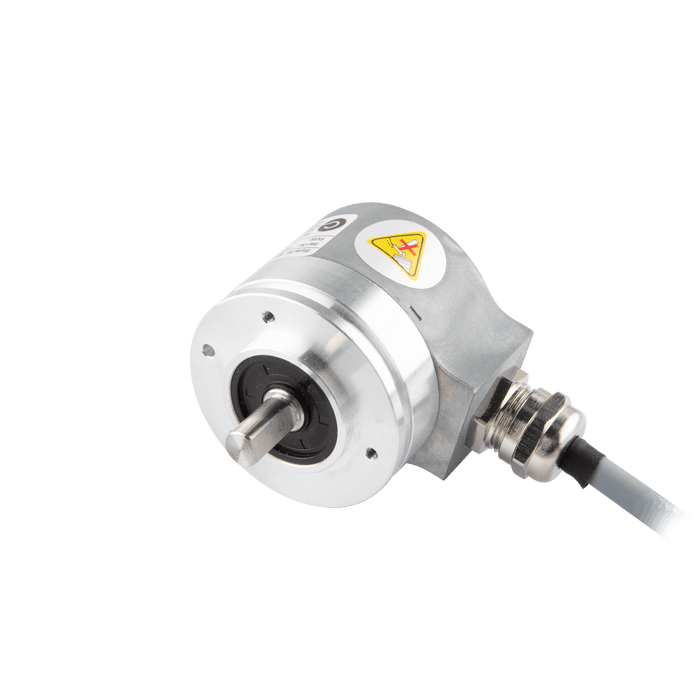

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 5 m, Resoluteion 300

EV50A6-P6PR-300.CN0050

SKU EV50A6-P6PR-300.CN0050
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 5 m, Resoluteion 300

$159.06 - $159.06
$159.06
$159.06 - $159.06
$159.06
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 5 m, Resoluteion 300

Specifications

Housing diameter 50 mm
Pulse frequency 300 kHz
Connection type Cable outlet
Cable length 5 m
Model Incremental encoder
Housing material Al-alloy
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 40 N Axial80 N Radial

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50A6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
