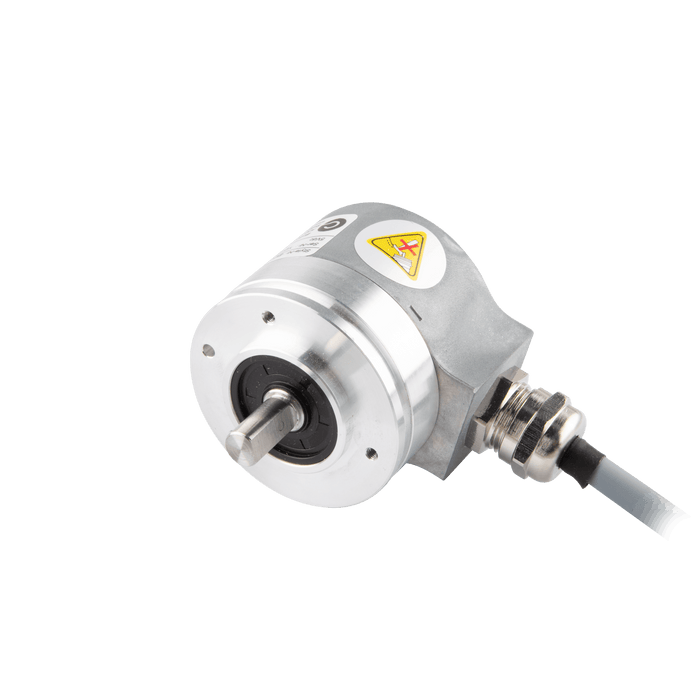

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 5 m, Resoluteion 1000

EV50A6-L6PR-1000.CN0050

SKU EV50A6-L6PR-1000.CN0050
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 5 m, Resoluteion 1000

$166.70 - $166.70
$166.70
$166.70 - $166.70
$166.70
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 5 m, Resoluteion 1000

Specifications

Cable length 5 m
Moment of inertia 1.9 x 10-6 kgm2
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 6 mm
Starting torque ＜ 0.01 N·m
Max load capacity of the shaft 40 N Axial80 N Radial

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50A6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
