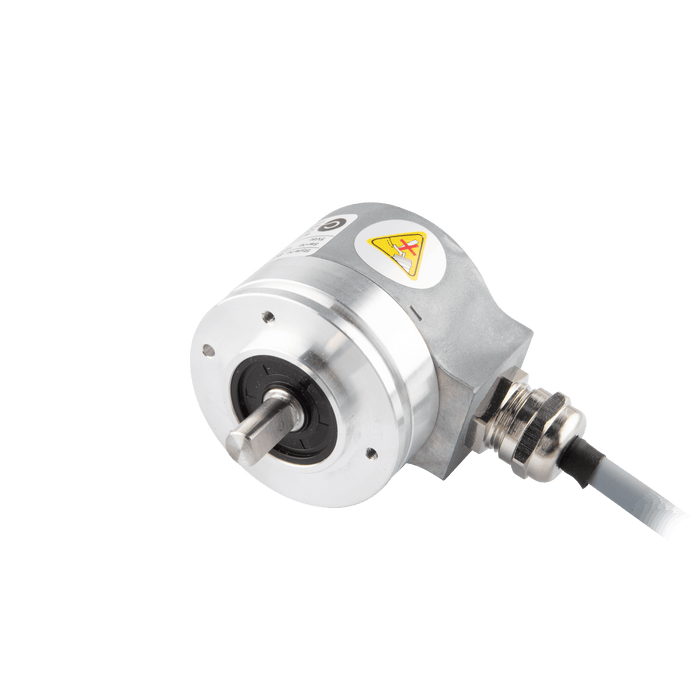

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1000

EV50A10-H6PR-1000

SKU EV50A10-H6PR-1000
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1000

$148.91 - $148.91
$148.91
$148.91 - $148.91
$148.91
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1000

Specifications

Model Incremental encoder
Cable length 1.5 m
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Ambient temperature -40 ... +85 °C
Flange type Clamping flange
Shock resistance 50 g, 11 ms
Connection type Cable outlet
Pulse frequency 300 kHz
Housing diameter 50 mm

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50A10(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
