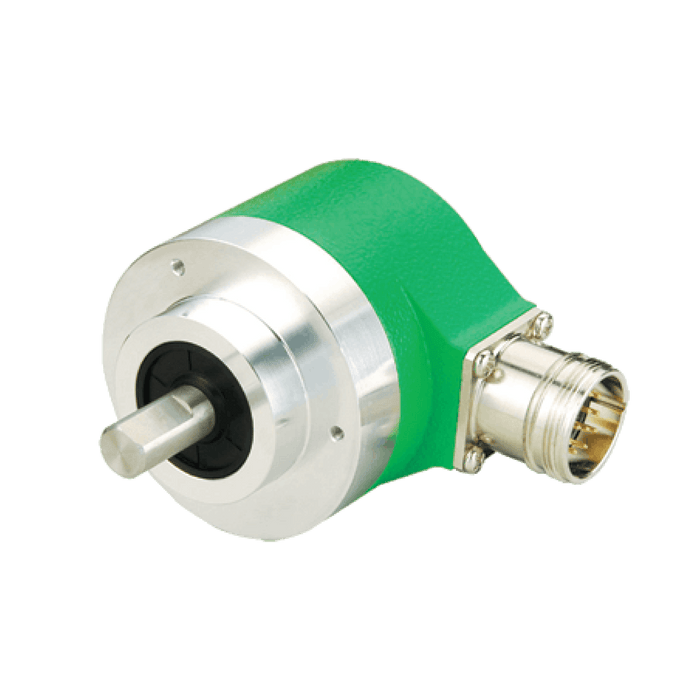

Absolute Singleturn Encoder, EAC58-EU Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, SSI Interface, Gray, Radial, M23 12Pin, Resoluteion 8192

EAC58C10-GS6XTR-8192EU

SKU EAC58C10-GS6XTR-8192EU
by ELCO Industrial Automation

Absolute Singleturn Encoder, EAC58-EU Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, SSI Interface, Gray, Radial, M23 12Pin, Resoluteion 8192

$354.01 - $354.01
$354.01
$354.01 - $354.01
$354.01
Availability:
In stock

Absolute Singleturn Encoder, EAC58-EU Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, SSI Interface, Gray, Radial, M23 12Pin, Resoluteion 8192

Specifications

Model Absolute Singleturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 10 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.8 x 10-6 kgm2

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAC58A-EU_V1.0_EN.pdf
3D Drawing CAD_E_EAC58C10-xxxxTR-xxxxEU_V1.0.stp
Manual UM_E_EAC58-EU_V1.1_EN&CN.pdf
