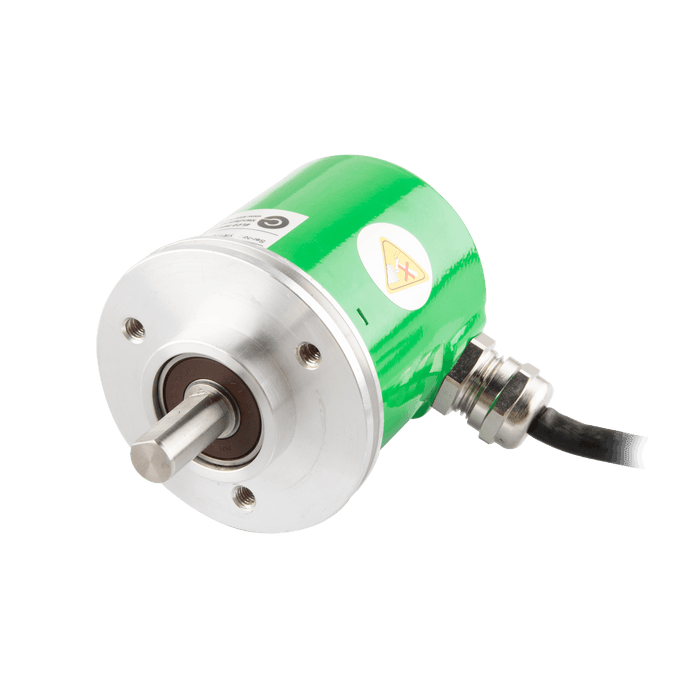

Absolute Singleturn Encoder, EAC58-EU Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Parallel Interface, NPN Negative, Binary, Radial, Cable 1.5 m, Resoluteion 1024

EAC58C10-BN6NPDR-1024EU

SKU EAC58C10-BN6NPDR-1024EU
by ELCO Industrial Automation

Absolute Singleturn Encoder, EAC58-EU Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Parallel Interface, NPN Negative, Binary, Radial, Cable 1.5 m, Resoluteion 1024

$304.54 - $304.54
$304.54
$304.54 - $304.54
$304.54
Availability:
In stock

Absolute Singleturn Encoder, EAC58-EU Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Parallel Interface, NPN Negative, Binary, Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Model Absolute Singleturn Encoder
IP rating IP65
Housing material Al-alloy
Housing diameter 58 mm
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 10 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.8 x 10-6 kgm2

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAC58A-EU_V1.0_EN.pdf
3D Drawing CAD_E_EAC58C10-xxxxPDR-xxxxEU_V1.0.stp
Manual UM_E_EAC58-EU_V1.1_EN&CN.pdf
