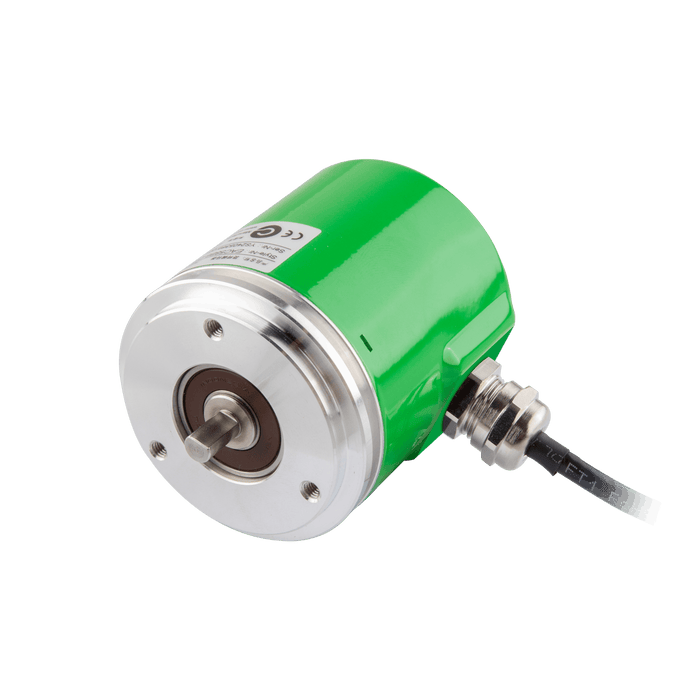

Absolute Singleturn Encoder, EAC58-EU Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 5 VDC, Parallel Interface, PNP Positive, Binary, Radial, Cable 1.5 m, Resoluteion 16

EAC58B6-BP5PPDR-16EU

SKU EAC58B6-BP5PPDR-16EU
by ELCO Industrial Automation

Absolute Singleturn Encoder, EAC58-EU Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 5 VDC, Parallel Interface, PNP Positive, Binary, Radial, Cable 1.5 m, Resoluteion 16

$310.10 - $310.10
$310.10
$310.10 - $310.10
$310.10
Availability:
In stock

Absolute Singleturn Encoder, EAC58-EU Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 5 VDC, Parallel Interface, PNP Positive, Binary, Radial, Cable 1.5 m, Resoluteion 16

Specifications

Flange type Synchro flange
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.8 x 10-6 kgm2
Starting torque ＜ 0.01 Nm
Shock resistance 50 g, 1

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAC58A-EU_V1.0_EN.pdf
Manual UM_E_EAC58-EU_V1.1_EN&CN.pdf
