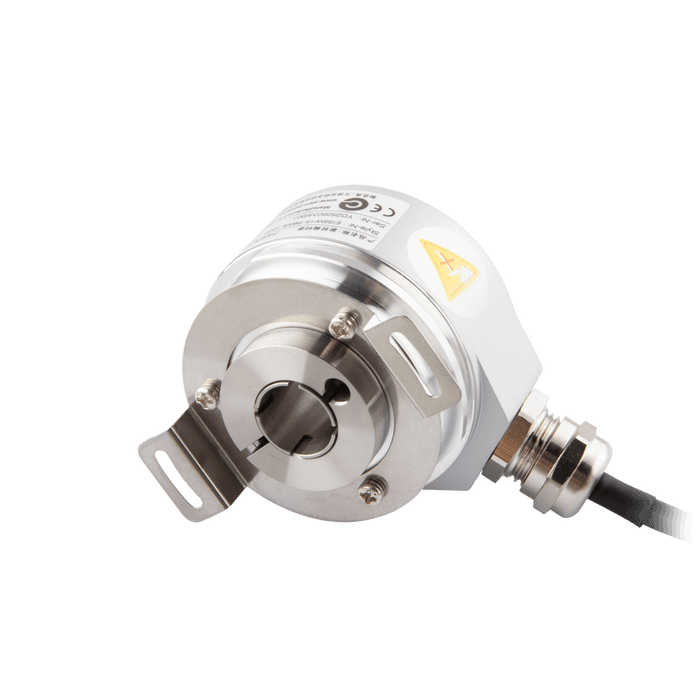

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

EV58W14-L6PR-1024

SKU EV58W14-L6PR-1024
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

$253.73 - $253.73
$253.73
$253.73 - $253.73
$253.73
Availability:
In stock

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Ambient temperature -20 ... +80 °C
Max Speed(rpm) 6000 rpm
Flange type Fixing plate
Shaft diameter 14 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Vibration resistance 10 g, 10 ... 2000 Hz
Cable length 1.5 m
Connection type Cable outlet
Pulse frequency 300 kHz
Housing material Al-alloy

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58P_V1.0_EN.pdf
3D Drawing CAD_E_EV58W14-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
