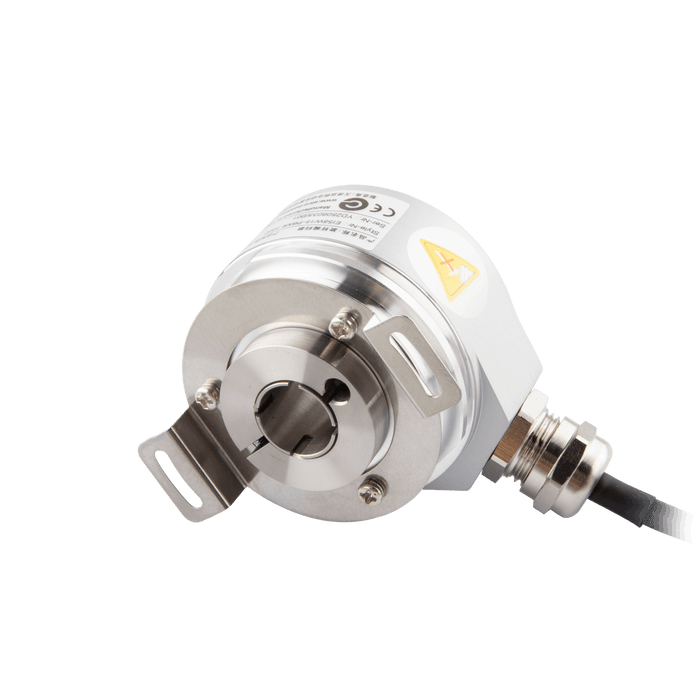

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

EV58W14-L5PR-1024

SKU EV58W14-L5PR-1024
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

$246.09 - $246.09
$246.09
$246.09 - $246.09
$246.09
Availability:
In stock

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 6 x 10-6 kgm2
Vibration resistance 10 g, 10 ... 2000 Hz
Relative humidity/condensation 90 % Condensation not permitted
Starting torque ＜ 0.03 N·m
Shock resistance 50 g, 11 ms
Ambient temperature -20 ... +80

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58P_V1.0_EN.pdf
3D Drawing CAD_E_EV58W14-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
