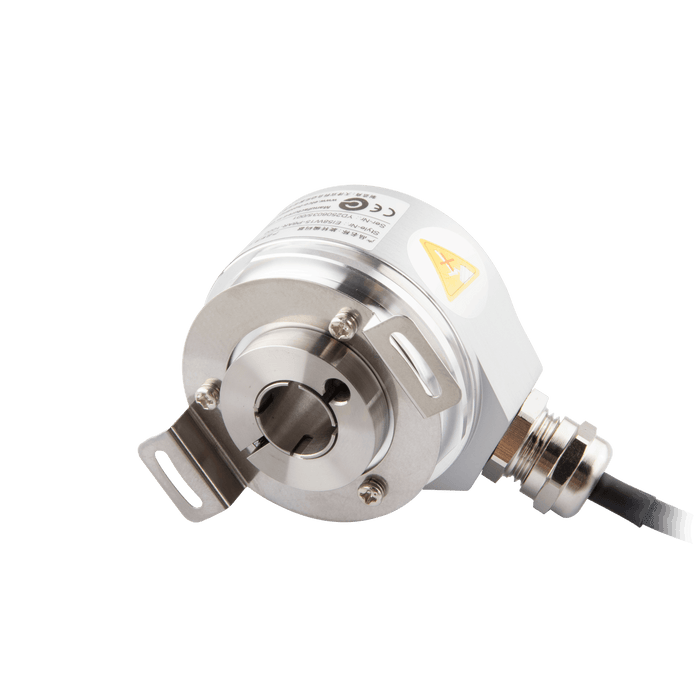

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

EV58W12-H6PR-1024

SKU EV58W12-H6PR-1024
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

$231.50 - $231.50
$231.50
$231.50 - $231.50
$231.50
Availability:
In stock

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Flange type Fixing plate
Shaft type Through hollow shaft
Pulse frequency 300 kHz
Shaft diameter 12 mm
Shock resistance 50 g, 11 ms
Cable length 1.5 m
Connection type Cable outlet
Permissible load(channel) ±30 mA

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58P_V1.0_EN.pdf
3D Drawing CAD_E_EV58W12-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
