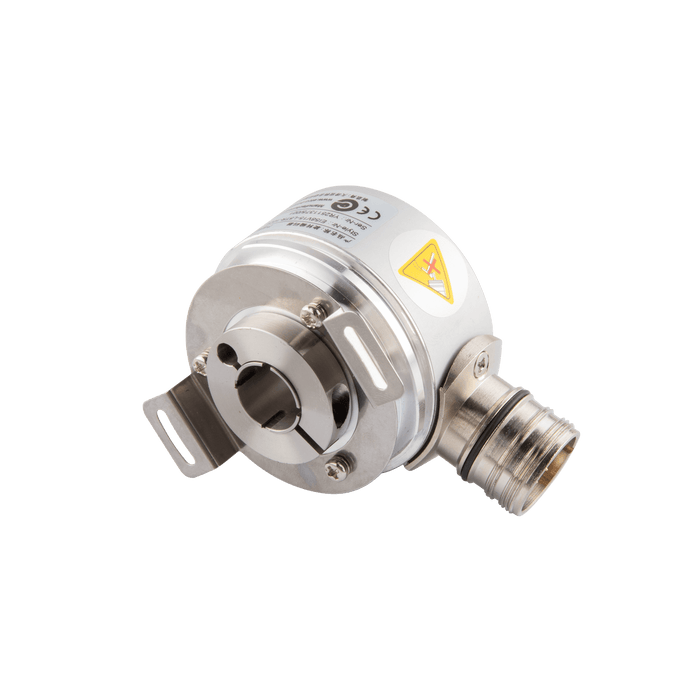

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M23 12Pin, Resoluteion 600

EV58W10-P6TR-600

SKU EV58W10-P6TR-600
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M23 12Pin, Resoluteion 600

$272.26 - $272.26
$272.26
$272.26 - $272.26
$272.26
Availability:
In stock

Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M23 12Pin, Resoluteion 600

Specifications

Connection type M23 12-pin Male
Model Incremental encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 10 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58P_V1.0_EN.pdf
3D Drawing CAD_E_EV58W10-xxTR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
