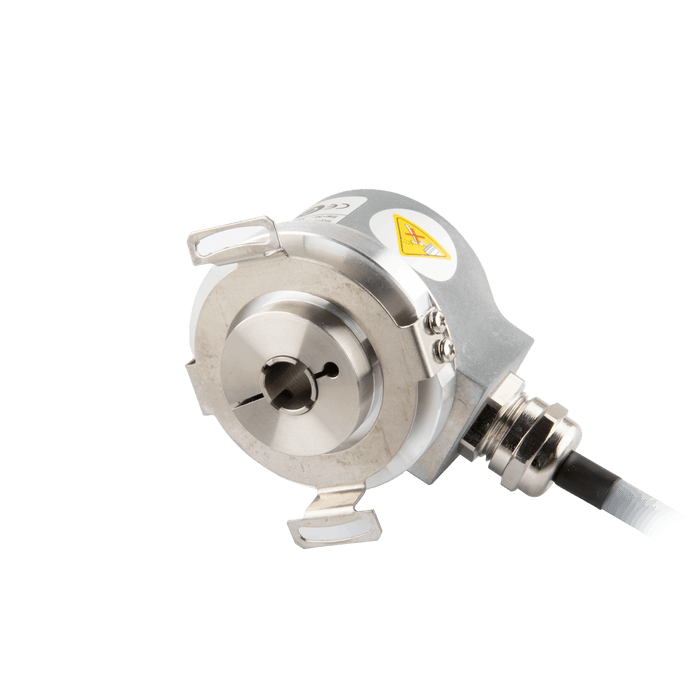

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 6H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

EV50W6-L5PR-1024

SKU EV50W6-L5PR-1024
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 6H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

$164.80 - $164.80
$164.80
$164.80 - $164.80
$164.80
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 6H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Max Speed(rpm) 6000 rpm
Max load capacity of the shaft 40 N Axial80 N Radial
Shaft type Through hollow shaft
Weight 400 g
Relative humidity/condensation 90 % Condensation not permitted
Shaft diameter 6 mm
Resolution 1024 ppr
Ambient temperature -40 ... +85 °C
Flange type Fixing plate

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
