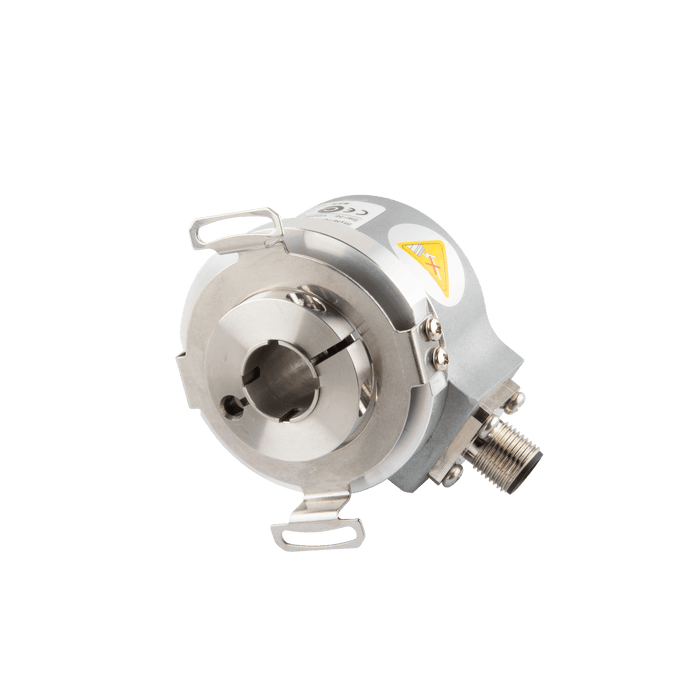

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 5Pin, Resoluteion 1024

EV50W14-P6PR-1024M5

SKU EV50W14-P6PR-1024M5
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 5Pin, Resoluteion 1024

$274.95 - $274.95
$274.95
$274.95 - $274.95
$274.95
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 14H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 5Pin, Resoluteion 1024

Specifications

Model Incremental encoder
Flange type Fixing plate
Shaft type Through hollow shaft
Relative humidity/condensation 90 % Condensation not permitted
Housing diameter 50 mm
Max Speed(rpm) 6000 rpm
Ambient temperature -40 ... +85 °C
Shaft diameter 14 mm
Resolution 1024 ppr
Moment of inertia 6 x 10-6 kg

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W14(R)-xxPR-xxxxM5_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
