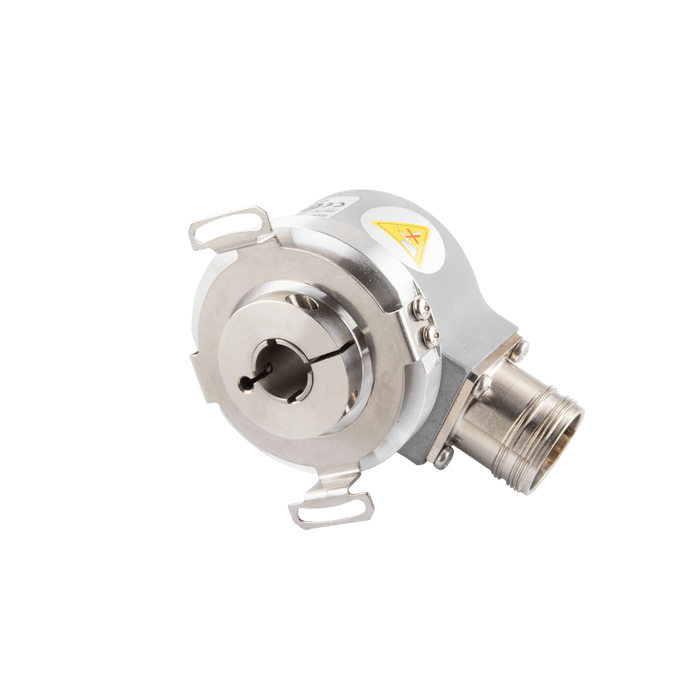

Hollow Shaft incremental encoder, EV50 Series, Double-winged coupling, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 1024

EV50W12-L6PR-1024T

SKU EV50W12-L6PR-1024T
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged coupling, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 1024

$249.80 - $249.80
$249.80
$249.80 - $249.80
$249.80
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged coupling, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 1024

Specifications

Weight 400 g
Resolution 1024 ppr
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 12 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W12(R)-xxPR-xxxxT_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
