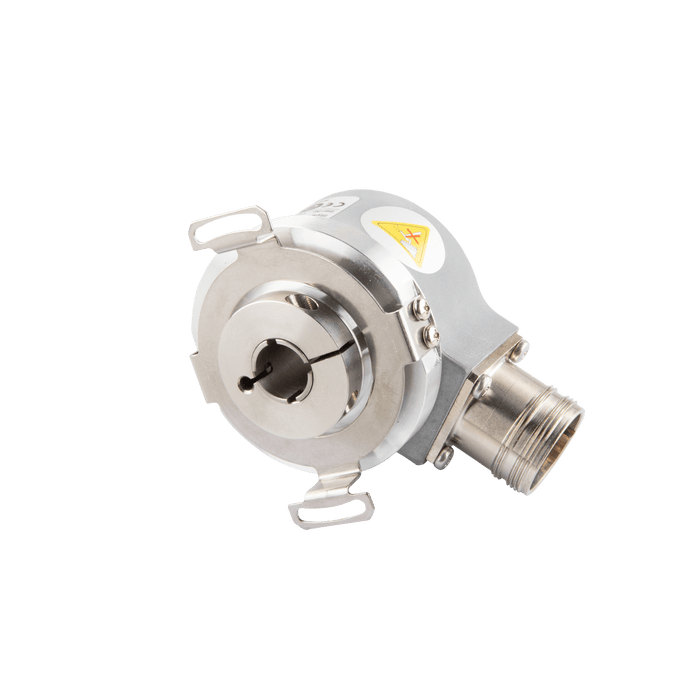

Hollow Shaft incremental encoder, EV50 Series, Double-winged coupling, Hollow Shaft Diameter 12H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 512

EV50W12-L5PR-512T

SKU EV50W12-L5PR-512T
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged coupling, Hollow Shaft Diameter 12H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 512

$242.15 - $242.15
$242.15
$242.15 - $242.15
$242.15
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged coupling, Hollow Shaft Diameter 12H7 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 512

Specifications

Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 12 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 6 x 10-6 kgm2
Starting torque ＜ 0

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W12(R)-xxPR-xxxxT_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
