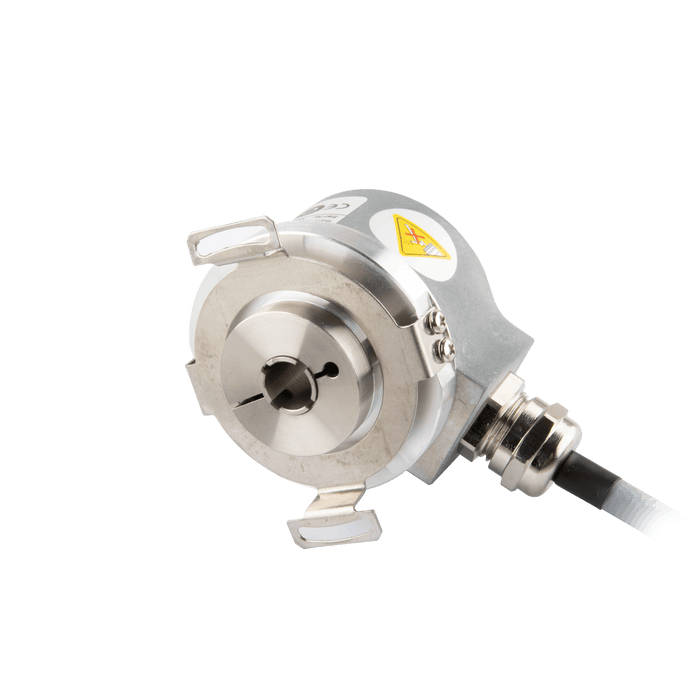

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 2000

EV50W12-H6PR-2000

SKU EV50W12-H6PR-2000
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 2000

$242.38 - $242.38
$242.38
$242.38 - $242.38
$242.38
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 2000

Specifications

Connection type Cable outlet
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 12 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 6 x

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W12(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
