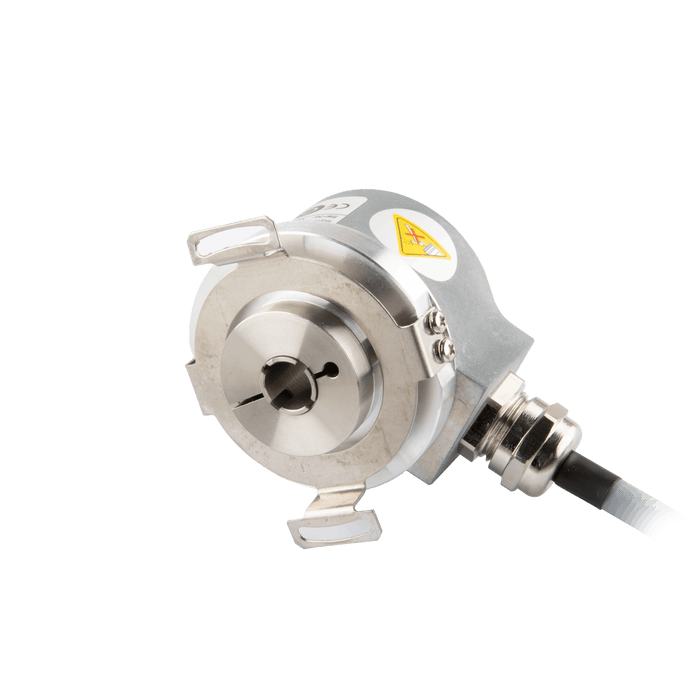

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 360

EV50W10R-H6PR-360

SKU EV50W10R-H6PR-360
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 360

$206.12 - $206.12
$206.12
$206.12 - $206.12
$206.12
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resoluteion 360

Specifications

Resolution 360 ppr
Supply voltage 10 ... 30 V DC
Output logic Push-pull HTL with inverted signal
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 10 mm

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W10(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
