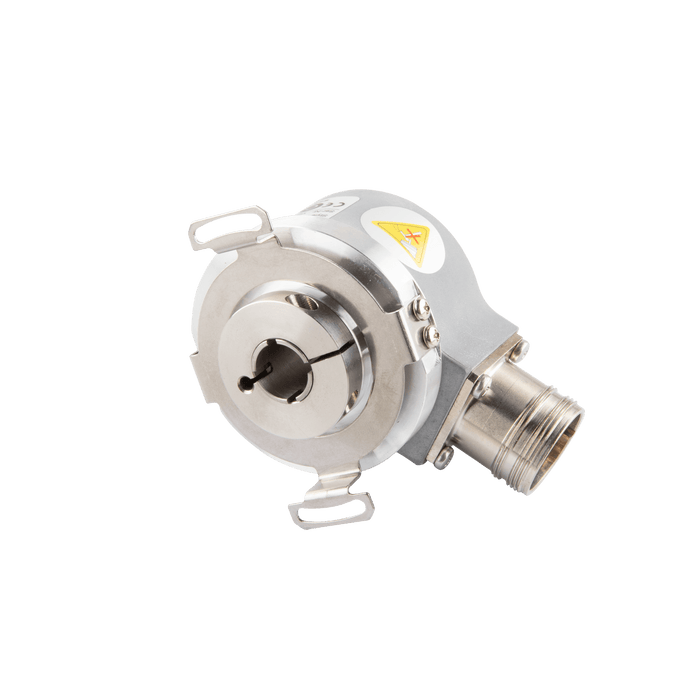

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M23 12pin, Resoluteion 2048

EV50W10-L6PR-2048T

SKU EV50W10-L6PR-2048T
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M23 12pin, Resoluteion 2048

$221.49 - $221.49
$221.49
$221.49 - $221.49
$221.49
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, M23 12pin, Resoluteion 2048

Specifications

Shaft diameter 10 mm
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 6 x 10-6 kgm2
Starting torque ＜ 0

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W10(R)-xxPR-xxxxT_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
