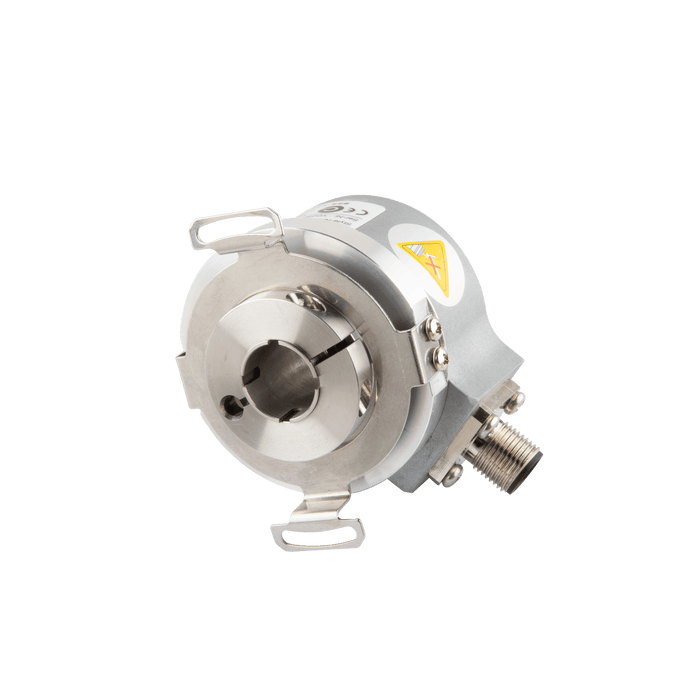

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

EV50W10-H6PR-1024M8

SKU EV50W10-H6PR-1024M8
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

$186.25 - $186.25
$186.25
$186.25 - $186.25
$186.25
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M12 8Pin, Resoluteion 1024

Specifications

Shaft type Through hollow shaft
IP rating IP65
Model Incremental encoder
Shaft diameter 10 mm
Relative humidity/condensation 90 % Condensation not permitted
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Ambient temperature -40 ... +85 °C
Moment of inertia 6 x 10-6 kgm2

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50W10(R)-xxPR-xxxxM8_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
