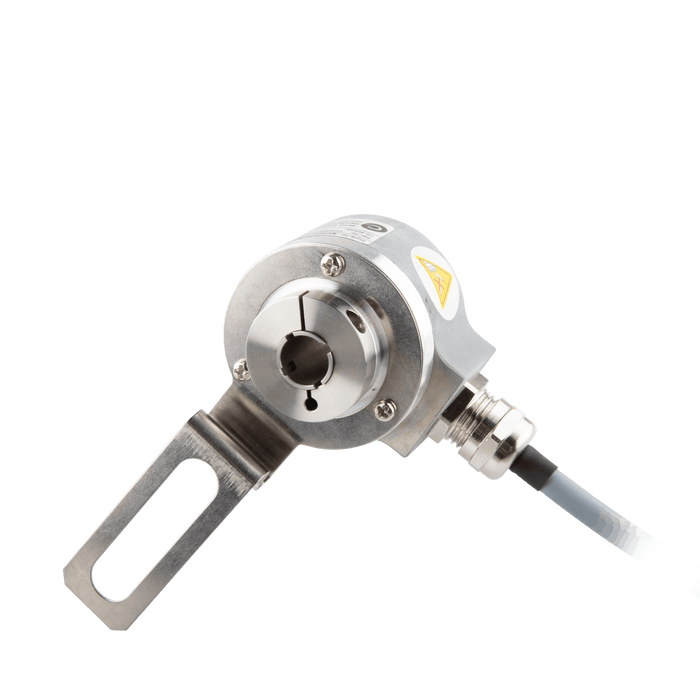

Hollow Shaft incremental encoder, EV50 Series, Long tether arm, Hollow Shaft Diameter 15H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

EV50H15-L6PR-1024

SKU EV50H15-L6PR-1024
by ELCO Industrial Automation

Hollow Shaft incremental encoder, EV50 Series, Long tether arm, Hollow Shaft Diameter 15H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

$221.45 - $221.45
$221.45
$221.45 - $221.45
$221.45
Availability:
In stock

Hollow Shaft incremental encoder, EV50 Series, Long tether arm, Hollow Shaft Diameter 15H7 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Shaft diameter 15 mm
Housing diameter 50 mm
Max Speed(rpm) 6000 rpm
Model Incremental encoder
Shaft type Through hollow shaft
Max load capacity of the shaft 40 N Axial80 N Radial
Cable length 1.5 m
Flange type Fixing plate
Moment of inertia 6 x 10-6 kgm2
Shock resistance 50 g, 11 ms

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50P_V1.0_EN.pdf
3D Drawing CAD_E_EV50H15(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
