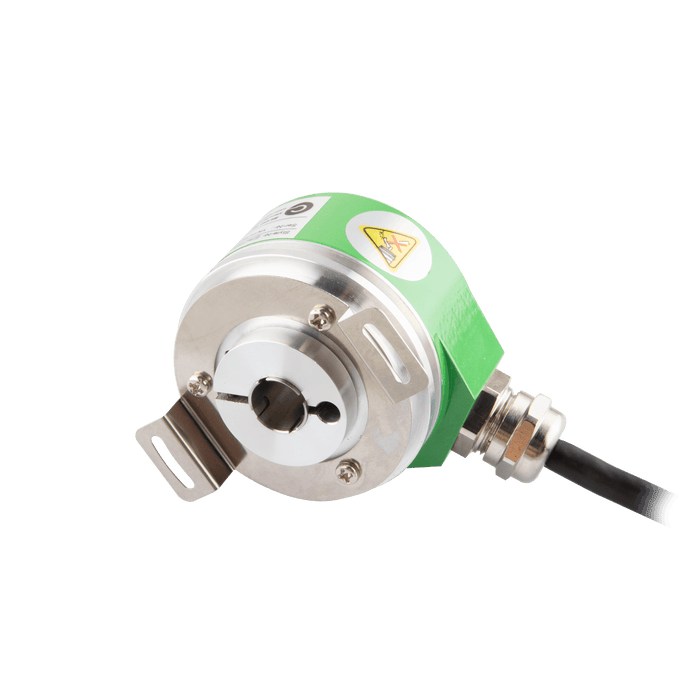

Absolute Singleturn Encoder, EAC58-EU Series, Double-winged spring installation, Hollow shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Binary, Radial, Cable 1.5 m, Resoluteion 8192

EAC58W12-BS6XPCR-8192EU

SKU EAC58W12-BS6XPCR-8192EU
by ELCO Industrial Automation

Absolute Singleturn Encoder, EAC58-EU Series, Double-winged spring installation, Hollow shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Binary, Radial, Cable 1.5 m, Resoluteion 8192

$394.82 - $394.82
$394.82
$394.82 - $394.82
$394.82
Availability:
In stock

Absolute Singleturn Encoder, EAC58-EU Series, Double-winged spring installation, Hollow shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Binary, Radial, Cable 1.5 m, Resoluteion 8192

Specifications

Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Max load capacity of the shaft 60 N Axial120 N Radial
Model Absolute Singleturn Encoder
IP rating IP65
Housing material Al-alloy
Shaft diameter 12 mm
Flange type Fixing plate
Shaft type Through hollow shaft
Housing diameter 58

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAC58P-EU_V1.0_EN.pdf
3D Drawing CAD_E_EAC58W12-xxxxPCR-xxxxEU_V1.0.stp
Manual UM_E_EAC58-EU_V1.1_EN&CN.pdf
