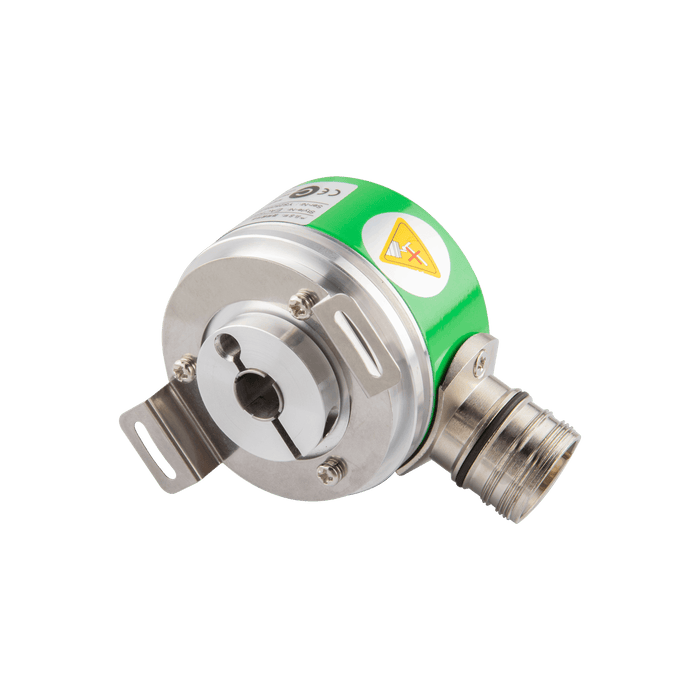

Absolute Singleturn Encoder, EAC58-EU Series, Double-winged spring installation, Hollow shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Parallel Interface, PNP Positive, Binary, Radial, M23 17Pin, Resoluteion 4096

EAC58W10-BP6PTAR-4096EU

SKU EAC58W10-BP6PTAR-4096EU
by ELCO Industrial Automation

Absolute Singleturn Encoder, EAC58-EU Series, Double-winged spring installation, Hollow shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Parallel Interface, PNP Positive, Binary, Radial, M23 17Pin, Resoluteion 4096

$445.26 - $445.26
$445.26
$445.26 - $445.26
$445.26
Availability:
In stock

Absolute Singleturn Encoder, EAC58-EU Series, Double-winged spring installation, Hollow shaft Diameter 10H7 mm, Supply Voltage 10...30 VDC, Parallel Interface, PNP Positive, Binary, Radial, M23 17Pin, Resoluteion 4096

Specifications

Model Absolute Singleturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 10 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Shock resistance 50 g, 11 ms
Max Speed(rpm) 6000 rpm

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAC58P-EU_V1.0_EN.pdf
3D Drawing CAD_E_EAC58W10-xxxxTAR-xxxx_V1.0.stp
Manual UM_E_EAC58-EU_V1.1_EN&CN.pdf
