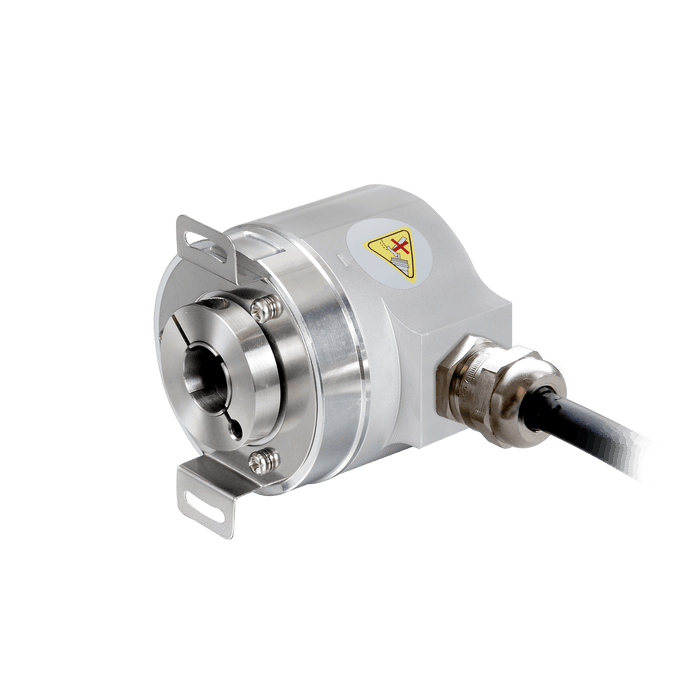

Absolute multiturn Encoder, EAM58-EU Series, Double-winged spring installation, Shaft Diameter 15H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Gray, Radial, Cable 1.5 m, Resoluteion 4096/8192

EAM58W15-GS6XPCR-4096/8192EU

SKU EAM58W15-GS6XPCR-4096/8192EU
by ELCO Industrial Automation

Absolute multiturn Encoder, EAM58-EU Series, Double-winged spring installation, Shaft Diameter 15H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Gray, Radial, Cable 1.5 m, Resoluteion 4096/8192

$565.04 - $565.04
$565.04
$565.04 - $565.04
$565.04
Availability:
In stock

Absolute multiturn Encoder, EAM58-EU Series, Double-winged spring installation, Shaft Diameter 15H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Gray, Radial, Cable 1.5 m, Resoluteion 4096/8192

Specifications

Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Model Absolute Multiturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 15 mm
Max load capacity of the shaft 80 N Axial160 N Radia

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-EU_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W12-xSxXPCR-xxxx-xxxxEU_V1.0.stp
Manual UM_E_EAM58-EU_V1.1_EN&CN.pdf
