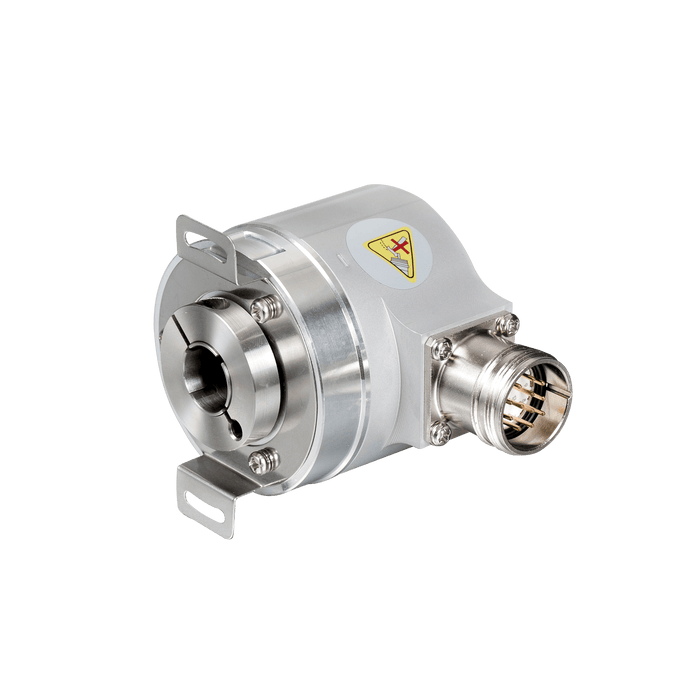

Absolute multiturn Encoder, EAM58-EU Series, Double-winged spring installation, Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Binary, Radial, M23 12Pin, Resoluteion 4096/16384

EAM58W12-BS6XTR-4096/16384EU

SKU EAM58W12-BS6XTR-4096/16384EU
by ELCO Industrial Automation

Absolute multiturn Encoder, EAM58-EU Series, Double-winged spring installation, Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Binary, Radial, M23 12Pin, Resoluteion 4096/16384

$987.14 - $987.14
$987.14
$987.14 - $987.14
$987.14
Availability:
In stock

Absolute multiturn Encoder, EAM58-EU Series, Double-winged spring installation, Shaft Diameter 12H7 mm, Supply Voltage 10...30 VDC, SSI Interface, Binary, Radial, M23 12Pin, Resoluteion 4096/16384

Specifications

Model Absolute Multiturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 12 mm
Max load capacity of the shaft 80 N Axial160 N Radial
Max speed(rpm) 6000 rpm
Moment of inertia 1.8 x 10-6 kgm2

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-EU_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W12-xSxXTR-xxxx-xxxxEU_V1.0.stp
Manual UM_E_EAM58-EU_V1.1_EN&CN.pdf
