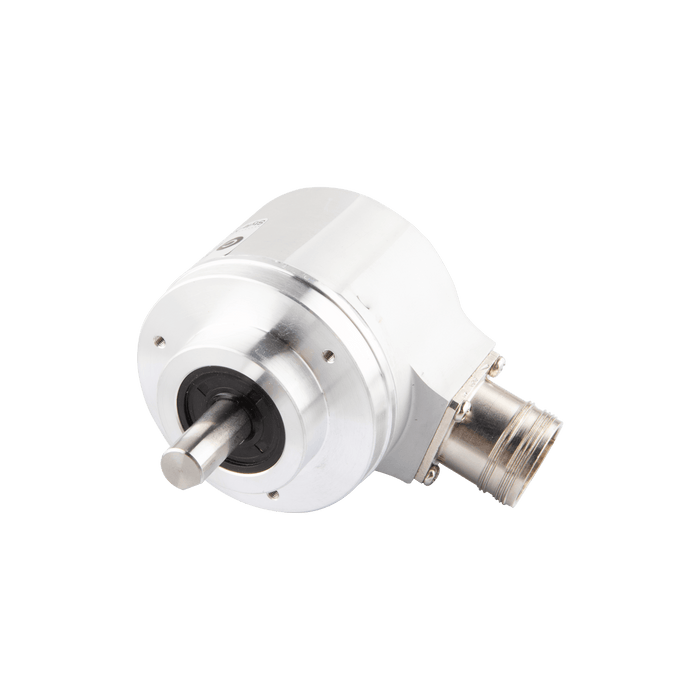

Absolute multiturn Encoder, EAM58-EU Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, SSI Interface, Gray, Radial, M23 12Pin, Resoluteion 4096/4096

Specifications

Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Model Absolute Multiturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 10 mm
Max load capacity of the shaft 80 N Axial160 N Radial

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
UL UL_E_EAB-EAC-EAM-PAM_V1.0_EN.pdf
Datasheet DS_E_EAM58-EU_V1.0_EN.pdf
3D Drawing CAD_E_EAM58C10-xSxXTR-xxxx-xxxxEU_V1.0.stp
Manual UM_E_EAM58-EU_V1.1_EN&CN.pdf
