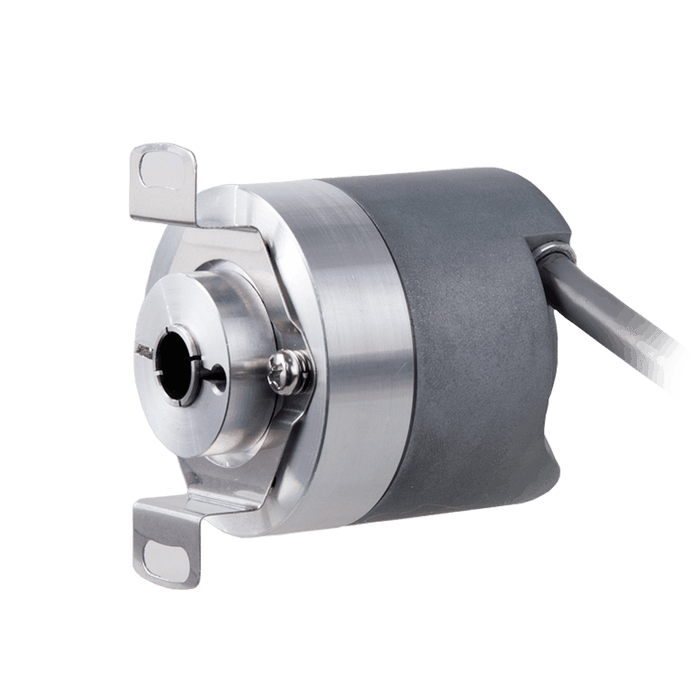

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output TTL, Side prewired cable 0.5 m, Resoluteion 2048

Specifications

Housing material Al-alloy
Housing diameter 40 mm
Ambient temperature -20 ... +85 °C
Weight 110 g
Resolution 2048 ppr
Permissible load(channel) ±50 mA
IP rating IP66
Flange type Fixing plate
Shaft type Blind hollow shaft
Shaft diameter 8 mm
Max load capacity of the shaft 60 N Axial100 N Radial

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40W8(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
