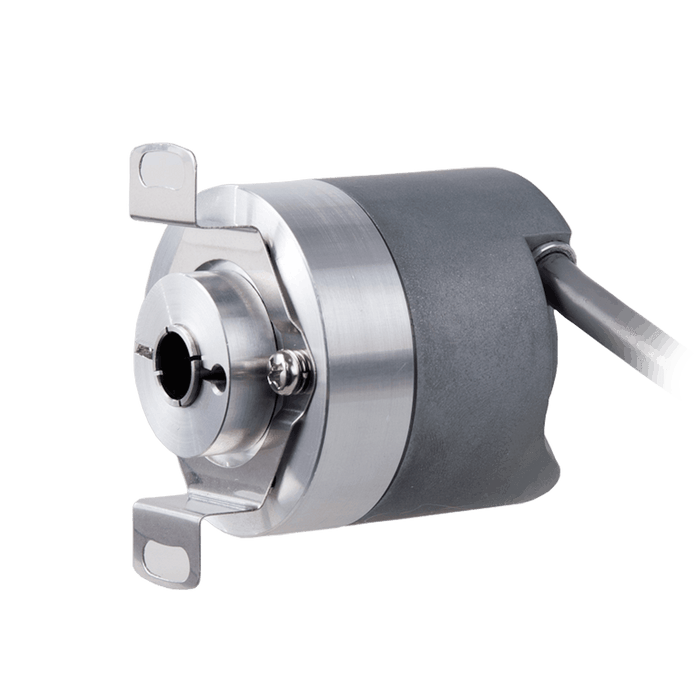

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output TTL, Side prewired cable 1.5 m, Resoluteion 1024

Specifications

Max Speed(rpm) 6000 rpm
Supply voltage 10 ... 30 V DC
Output logic TTL
Permissible load(channel) ±50 mA
Pulse frequency 800 kHz
Connection type Cable outlet
Model Incremental encoder
Housing diameter 40 mm
Housing material Al-alloy
IP rating IP66
Flange type Fixing plate
Shaft type Blind hollo

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40W8(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
