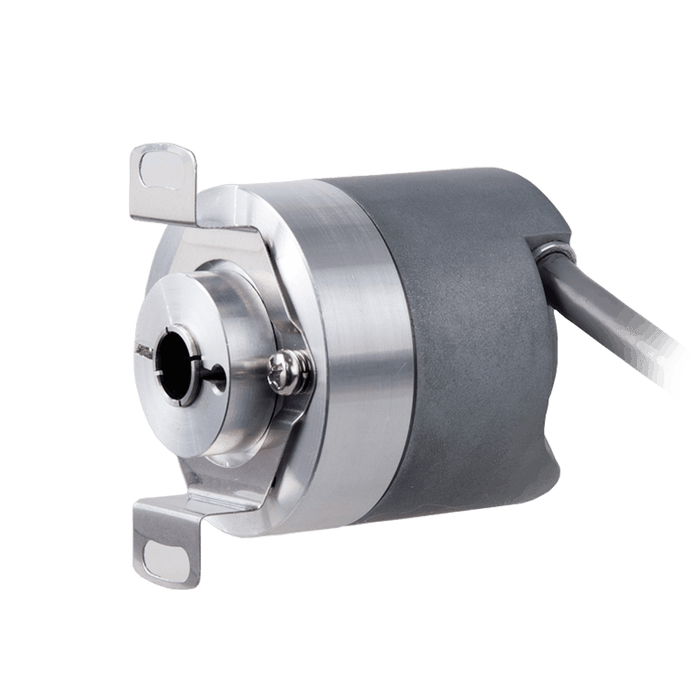

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output TTL, Side prewired cable 0.5 m, Resoluteion 1024

Specifications

Shaft diameter 8 mm
Max Speed(rpm) 6000 rpm
Ambient temperature -20 ... +85 °C
Resolution 1024 ppr
Max load capacity of the shaft 60 N Axial100 N Radial
Moment of inertia 1.9 x 10-6 kgm2
Shaft type Blind hollow shaft
Housing diameter 40 mm
Flange type Fixing plate
Shock resistance 50 g, 11 ms

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40W8(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
