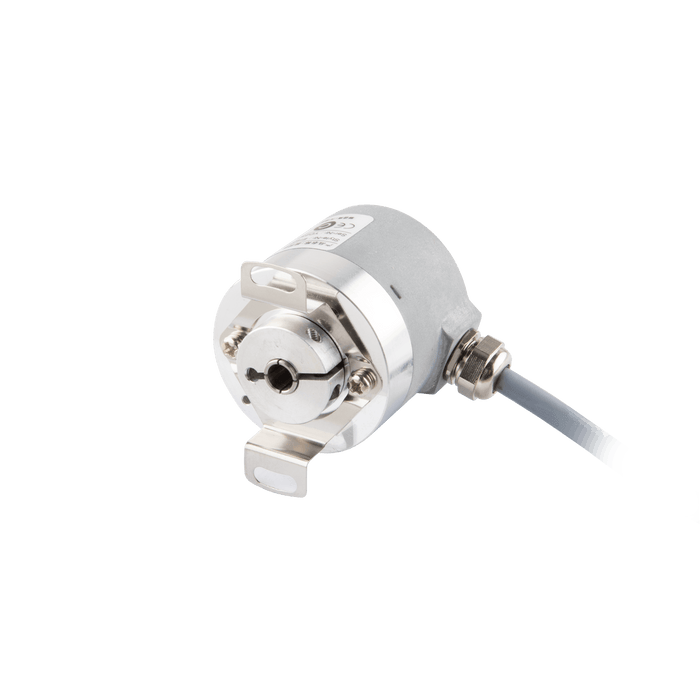

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 5 VDC, Output TTL(with inverted signal), Cable 0.5 m, Resoluteion 1000

EV40W8-L5PR-1000

SKU EV40W8-L5PR-1000
by ELCO Industrial Automation

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 5 VDC, Output TTL(with inverted signal), Cable 0.5 m, Resoluteion 1000

$122.19 - $122.19
$122.19
$122.19 - $122.19
$122.19
Availability:
In stock

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 5 VDC, Output TTL(with inverted signal), Cable 0.5 m, Resoluteion 1000

Specifications

Pulse frequency 800 kHz
Connection type Cable outlet
Cable length 0.5 m
Supply voltage 5 V DC
Output logic TTL
Permissible load(channel) ±50 mA
Model Incremental encoder
Housing material Al-alloy
Housing diameter 40 mm
IP rating IP66
Flange type Fixing plate
Shaft type Blind hollow shaft

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40W8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
