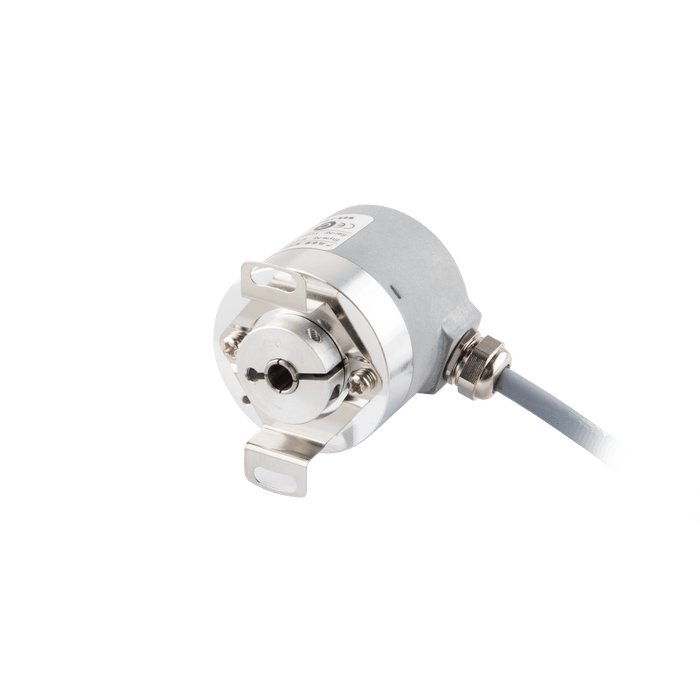

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 600

EV40W8-H6PR-600

SKU EV40W8-H6PR-600
by ELCO Industrial Automation

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 600

$122.19 - $122.19
$122.19
$122.19 - $122.19
$122.19
Availability:
In stock

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 600

Specifications

Resolution 600 ppr
Supply voltage 10 ... 30 V DC
Cable length 0.5 m
Connection type Cable outlet
Pulse frequency 800 kHz
Permissible load(channel) ±30 mA
Output logic Push-pull HTL with inverted signal
Model Incremental encoder
Flange type Fixing plate
Shaft diameter 8 mm

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40W8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
