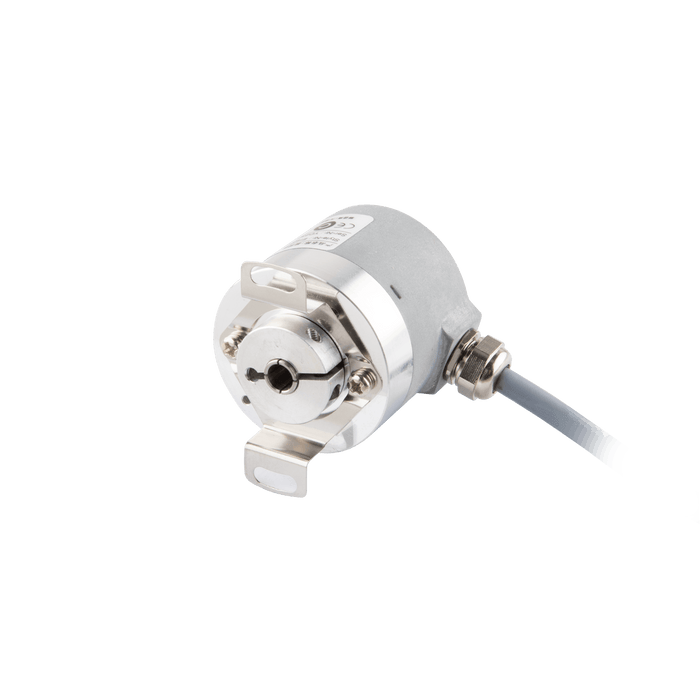

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 1000

EV40W8-H6PR-1000

SKU EV40W8-H6PR-1000
by ELCO Industrial Automation

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 1000

$122.19 - $122.19
$122.19
$122.19 - $122.19
$122.19
Availability:
In stock

Hollow shaft incremental encoder, Topydic Series EV40, Double wing fixing flange, Hollow Shaft Diameter 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 1000

Specifications

Flange type Fixing plate
Max load capacity of the shaft 60 N Axial100 N Radial
IP rating IP66
Starting torque ＜ 0.08 Nm
Resolution 1000 ppr
Shaft diameter 8 mm
Cable length 0.5 m
Moment of inertia 1.9 x 10-6 kgm2
Ambient temperature -20 ... +85 °C
Relative humidity/condensation 90 % Condensation n

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40W8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
