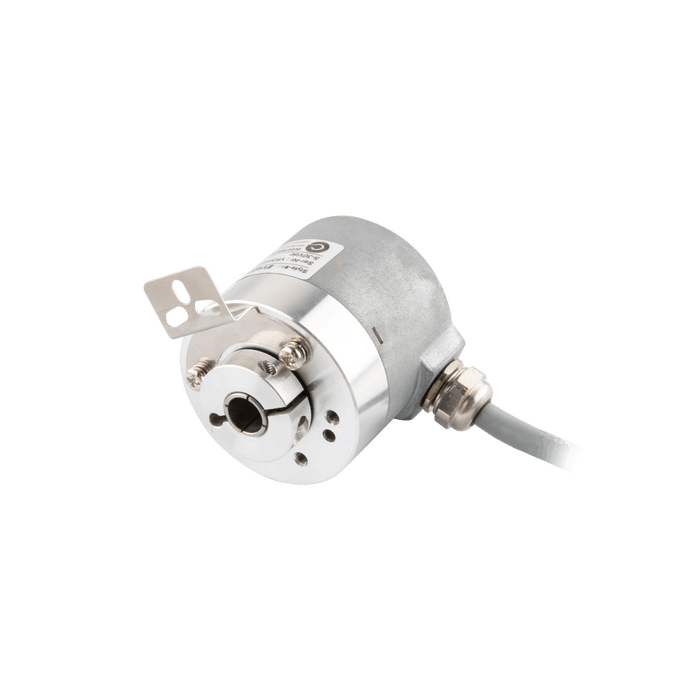

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 8H7 mm, 5 VDC, Output TTL(with inverted signal), Cable 0.5 m, Resoluteion 5000

Specifications

Model Incremental encoder
Housing material Al-alloy
Housing diameter 40 mm
IP rating IP66
Flange type Fixing plate
Shaft type Blind hollow shaft
Shaft diameter 8 mm
Max load capacity of the shaft 60 N Axial100 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40P8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
