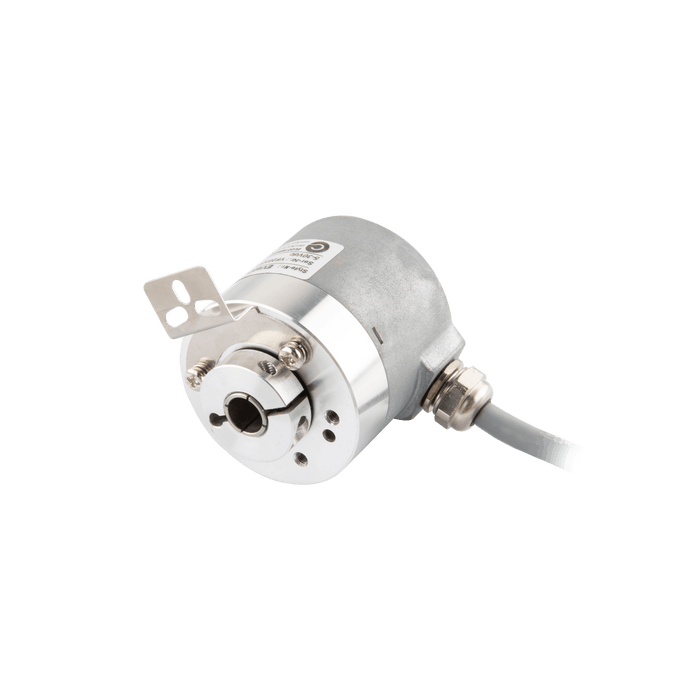

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 1024

EV40P8-H6PR-1024

SKU EV40P8-H6PR-1024
by ELCO Industrial Automation

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 1024

$122.19 - $122.19
$122.19
$122.19 - $122.19
$122.19
Availability:
In stock

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 0.5 m, Resoluteion 1024

Specifications

Vibration resistance 10 g, 10 ... 2000 Hz
Cable length 0.5 m
Ambient temperature -20 ... +85 °C
Pulse frequency 800 kHz
Connection type Cable outlet
Output logic Push-pull HTL with inverted signal
Supply voltage 10 ... 30 V DC
Permissible load(channel) ±30 mA
Relative humidity/condensation 90 % Cond

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40P8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
