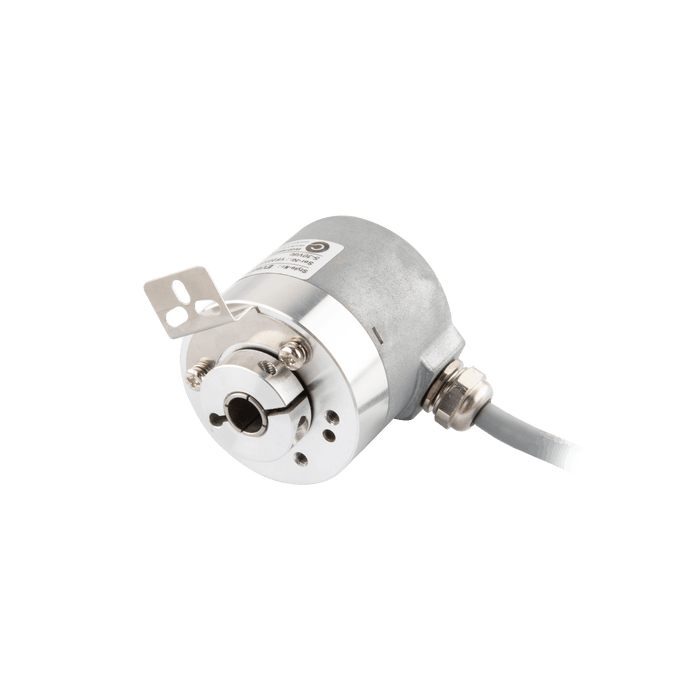

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 8H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 2 m, Resoluteion 1000

Specifications

Housing diameter 40 mm
Flange type Fixing plate
Ambient temperature -20 ... +85 °C
Moment of inertia 1.9 x 10-6 kgm2
Cable length 2 m
Shaft type Blind hollow shaft
Max load capacity of the shaft 60 N Axial100 N Radial
Max Speed(rpm) 6000 rpm
Shaft diameter 8 mm
Model Incremental encoder

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40P8(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
