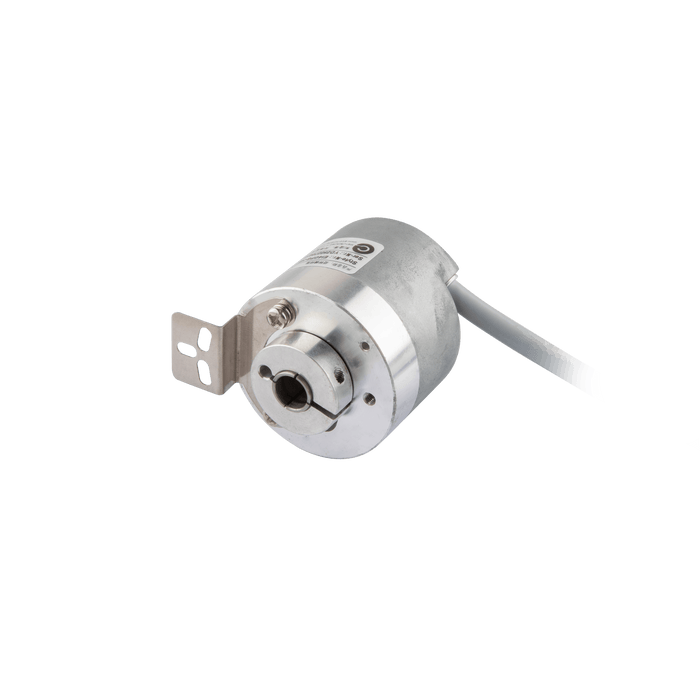

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 6H7 mm, 10...30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m, Resoluteion 1024

EV40P6-P6PR-1024TP.CN0050

SKU EV40P6-P6PR-1024TP.CN0050
by ELCO Industrial Automation

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 6H7 mm, 10...30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m, Resoluteion 1024

$142.89 - $142.89
$142.89
$142.89 - $142.89
$142.89
Availability:
In stock

Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 6H7 mm, 10...30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m, Resoluteion 1024

Specifications

Model Incremental encoder
IP rating IP66
Pulse frequency 800 kHz
Housing material Al-alloy
Housing diameter 40 mm
Flange type Fixing plate
Shaft type Blind hollow shaft
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial100 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40P6(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
