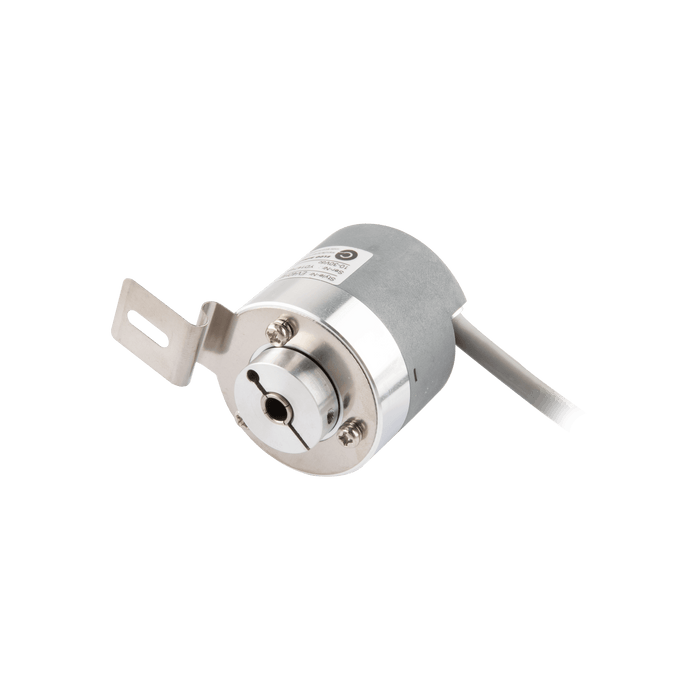

Hollow shaft incremental encoder, Topydic Series EV40, Long fastening arm, Shaft 6H7 mm, 10...30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m, Resoluteion 200

EV40H6-P6PR-200TP.CN0050

SKU EV40H6-P6PR-200TP.CN0050
by ELCO Industrial Automation

Hollow shaft incremental encoder, Topydic Series EV40, Long fastening arm, Shaft 6H7 mm, 10...30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m, Resoluteion 200

$142.89 - $142.89
$142.89
$142.89 - $142.89
$142.89
Availability:
In stock

Hollow shaft incremental encoder, Topydic Series EV40, Long fastening arm, Shaft 6H7 mm, 10...30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m, Resoluteion 200

Specifications

Max Speed(rpm) 6000 rpm
Resolution 200 ppr
Flange type Fixing plate
Starting torque ＜ 0.08 Nm
Shaft type Blind hollow shaft
Model Incremental encoder
Moment of inertia 1.9 x 10-6 kgm2
Relative humidity/condensation 90 % Condensation not permitted
Max load capacity of the shaft 60 N Axial100 N Radial

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40H6(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
