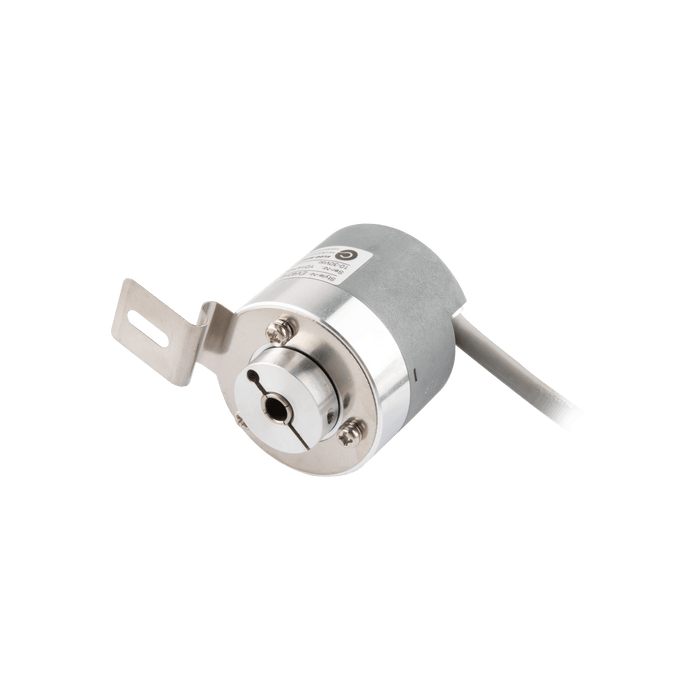

Hollow shaft incremental encoder, Topydic Series EV40, Long fastening arm, Shaft 6H7 mm, 10...30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m , Resoluteion 1024

Specifications

Shaft diameter 6 mm
Ambient temperature -20 ... +85 °C
Max load capacity of the shaft 60 N Axial100 N Radial
Housing diameter 40 mm
Cable length 5 m
Starting torque ＜ 0.08 Nm
Shaft type Blind hollow shaft
Flange type Fixing plate
Moment of inertia 1.9 x 10-6 kgm2
Weight 110 g
Max Speed(rpm) 6000

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40P_V1.0_EN.pdf
3D Drawing CAD_E_EV40H6(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
