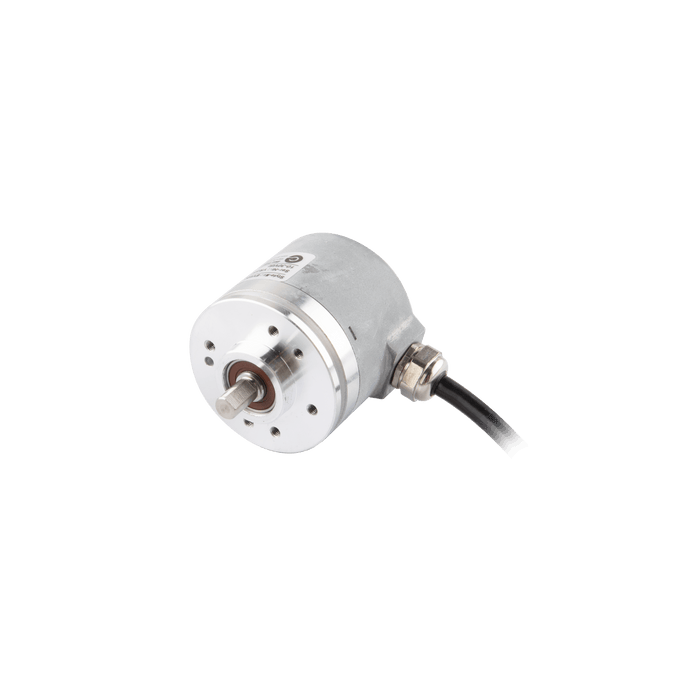

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull (without inverted signal), Cable 5 m, Resoluteion 500

EV40C6-P6PR-500.CN0050

SKU EV40C6-P6PR-500.CN0050
by ELCO Industrial Automation

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull (without inverted signal), Cable 5 m, Resoluteion 500

$121.17 - $121.17
$121.17
$121.17 - $121.17
$121.17
Availability:
In stock

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull (without inverted signal), Cable 5 m, Resoluteion 500

Specifications

Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial100 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0.08 N·m
Shock resistance 50 g, 11 ms
Relative humidity/condensation 90 % Condensation not permitte

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40C6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
