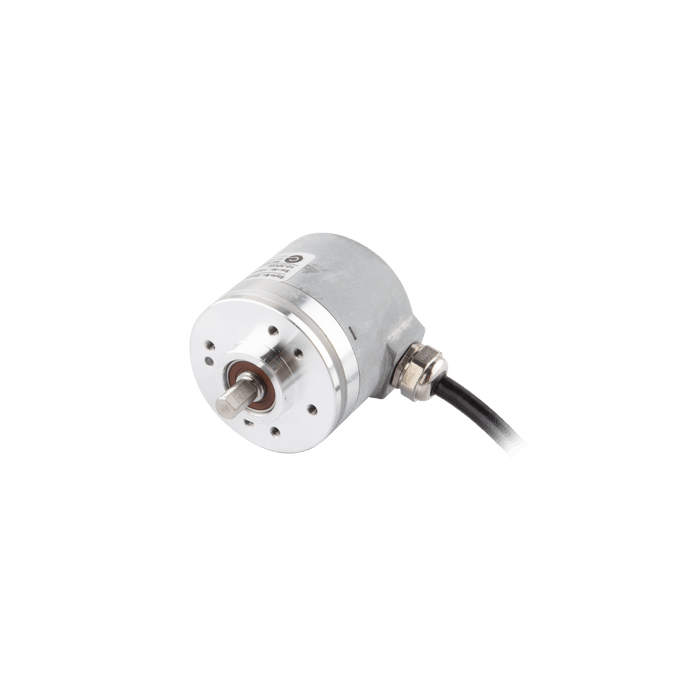

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull (without inverted signal), Cable 0.5 m, Resoluteion 500

Specifications

Shaft diameter 6 mm
Flange type Clamping flange
Shaft type Solid shaft
Model Incremental encoder
Max load capacity of the shaft 60 N Axial100 N Radial
Housing material Al-alloy
Housing diameter 40 mm
IP rating IP66
Max Speed(rpm) 6000 rpm
Resolution 500 ppr
Ambient temperature -20 ... +85 °C

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40C6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
