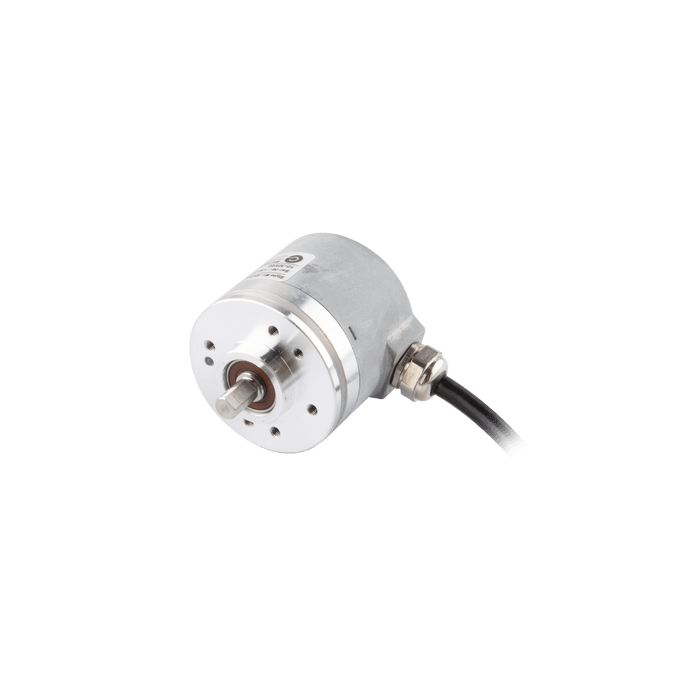

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull (with inverted signal), Cable 3 m, Resoluteion 1000

EV40C6-H6PR-1000.CN0030

SKU EV40C6-H6PR-1000.CN0030
by ELCO Industrial Automation

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull (with inverted signal), Cable 3 m, Resoluteion 1000

$117.42 - $117.42
$117.42
$117.42 - $117.42
$117.42
Availability:
In stock

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull (with inverted signal), Cable 3 m, Resoluteion 1000

Specifications

Ambient temperature -20 ... +85 °C
Weight 110 g
Resolution 1000 ppr
Supply voltage 10 ... 30 V DC
Output logic Push-pull HTL with inverted signal
Model Incremental encoder
Housing material Al-alloy
Housing diameter 40 mm
IP rating IP66
Flange type Clamping flange
Shaft type Solid shaft

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40C6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
