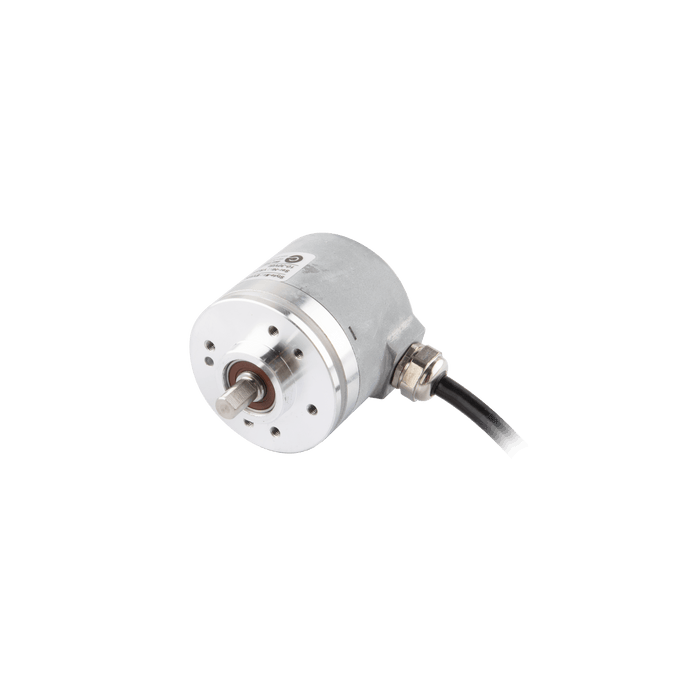

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (without inverted signal), Cable 1 m, Resoluteion 500

EV40B6-P6PR-500.CN0010

SKU EV40B6-P6PR-500.CN0010
by ELCO Industrial Automation

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (without inverted signal), Cable 1 m, Resoluteion 500

$101.34 - $101.34
$101.34
$101.34 - $101.34
$101.34
Availability:
In stock

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (without inverted signal), Cable 1 m, Resoluteion 500

Specifications

Ambient temperature -20 ... +85 °C
Model Incremental encoder
Housing material Al-alloy
IP rating IP66
Housing diameter 40 mm
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial100 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40B6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
